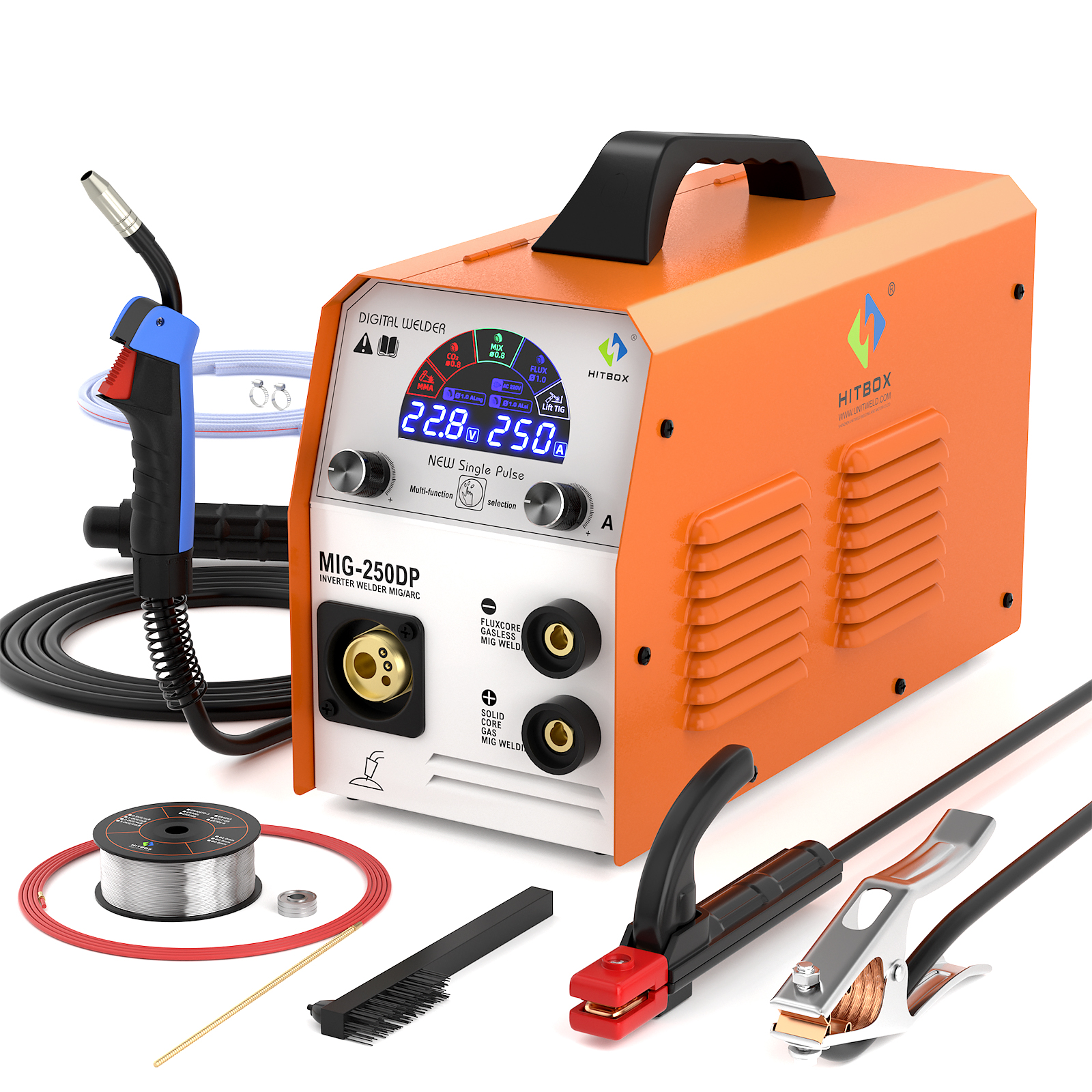

HITBOX | MIG250DP 5 in 1 MIG Welder

$0

Contact Us message
Basic parameters
  • ModelMIG-250DP
  • Input Voltage110V/220V
  • Frequency50/60HZ
  • Output CurrentMIG:30-160A MMA:10-140A
  • Rated Output VoltageMIG:15.5-22V MMA:20.4--26.4V
  • Duty Cycle40%
  • OCV54V
  • Weight9KG

Product Description

220V Pulse Mig 3 In 1 Inverter Weld Technology

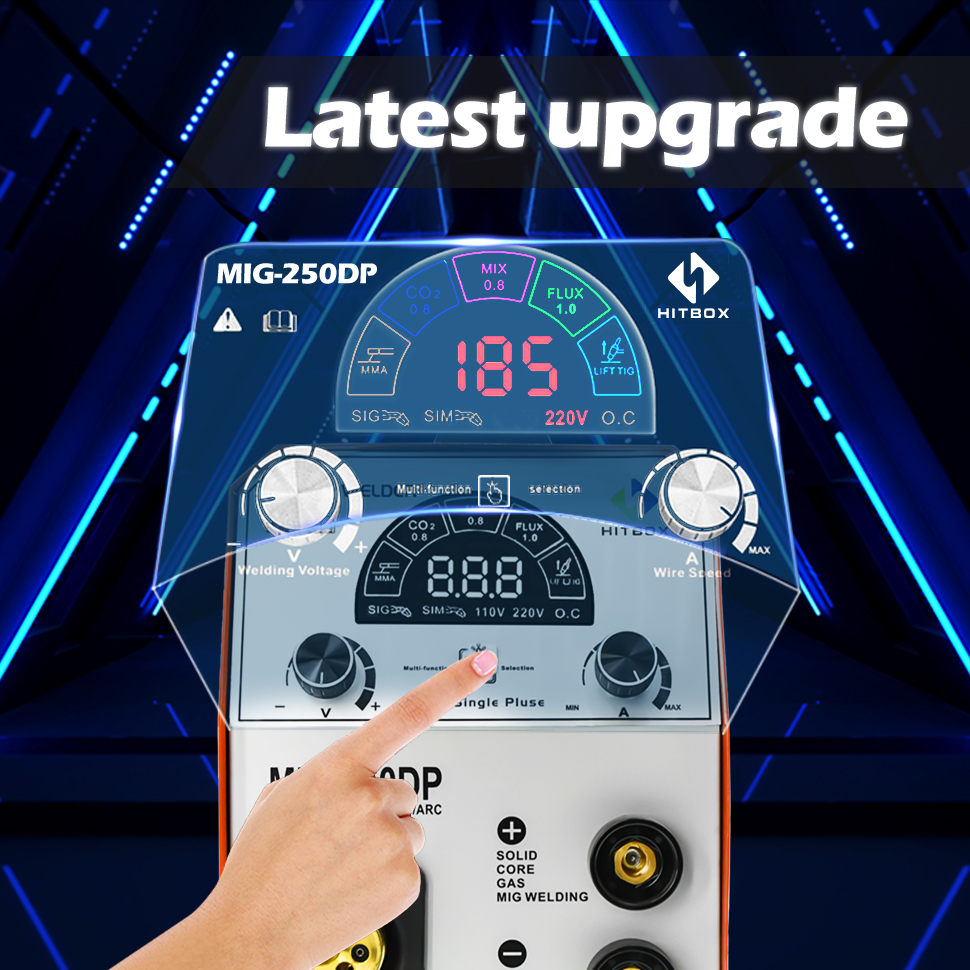

Synergy control technology machine,ｓｅｌｅｃｔ which mode you want to use,adjust the proper current,voltage and wire speed will be changed automatically by the current.

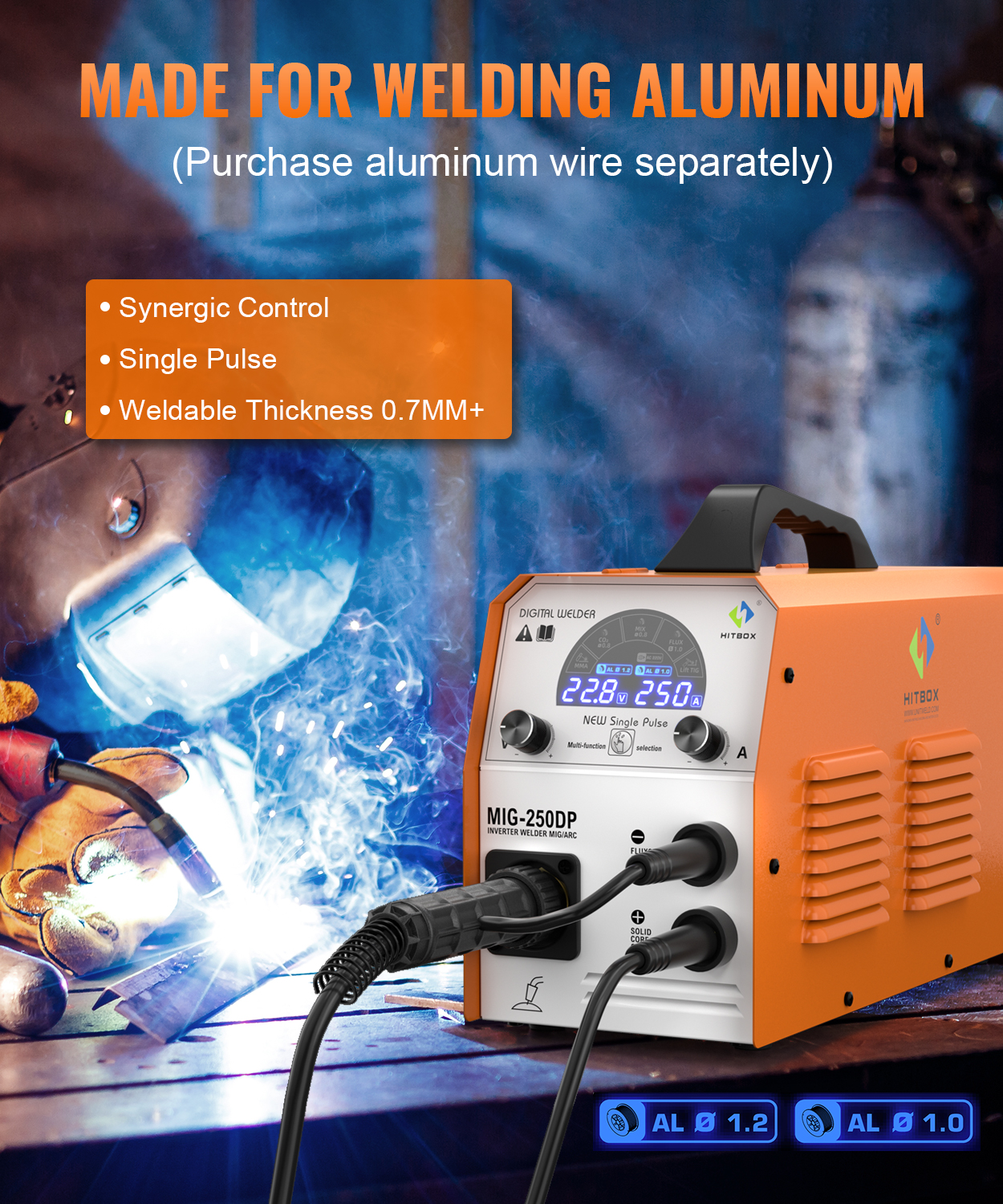

For Aluminum,stainless steel and iron welding,Gas & No Gas Self-Shielded welding machine.

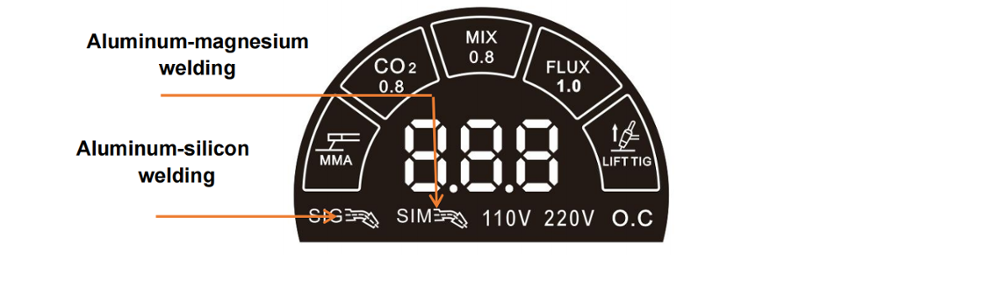

Aluminum-silicon welding

Aluminum-magnesium welding














Specifications:

Brand: HITBOX
Type: MIG250DP
Input supply voltage (V): AC220V - 15%, 50 / 60Hz
Rated input current (A): 32
Rated power capacity (KVA): 7.1
Recommended fuse capacity (A): 50
Current setting range (A) :( MMA welding) 20 ~ 200
Current setting range (A) :( Gas shielded arc welding) 20 ~ 200
Volta Adjustment Range (V): 11 ~ 26

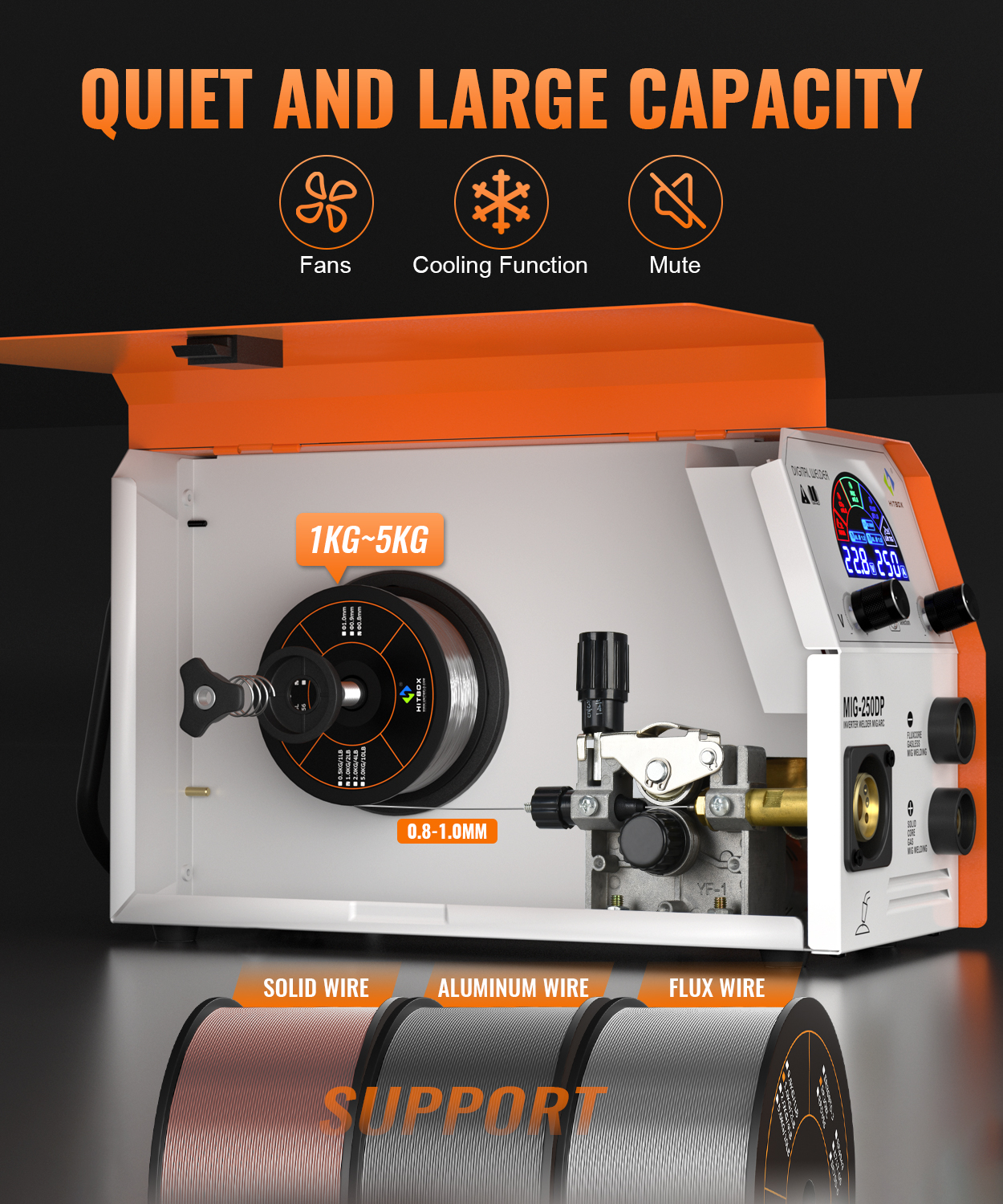

Feed speed adjustment range (m / min): 1.5 ~ 16
Welding Wire Diameter (mm): 0.6 / 0.8 / 1.0
Rated duty cycle: 40%
Efficiency (%): 85
Power factor: 0.7
Protection class: IP21S
Insulation class: F

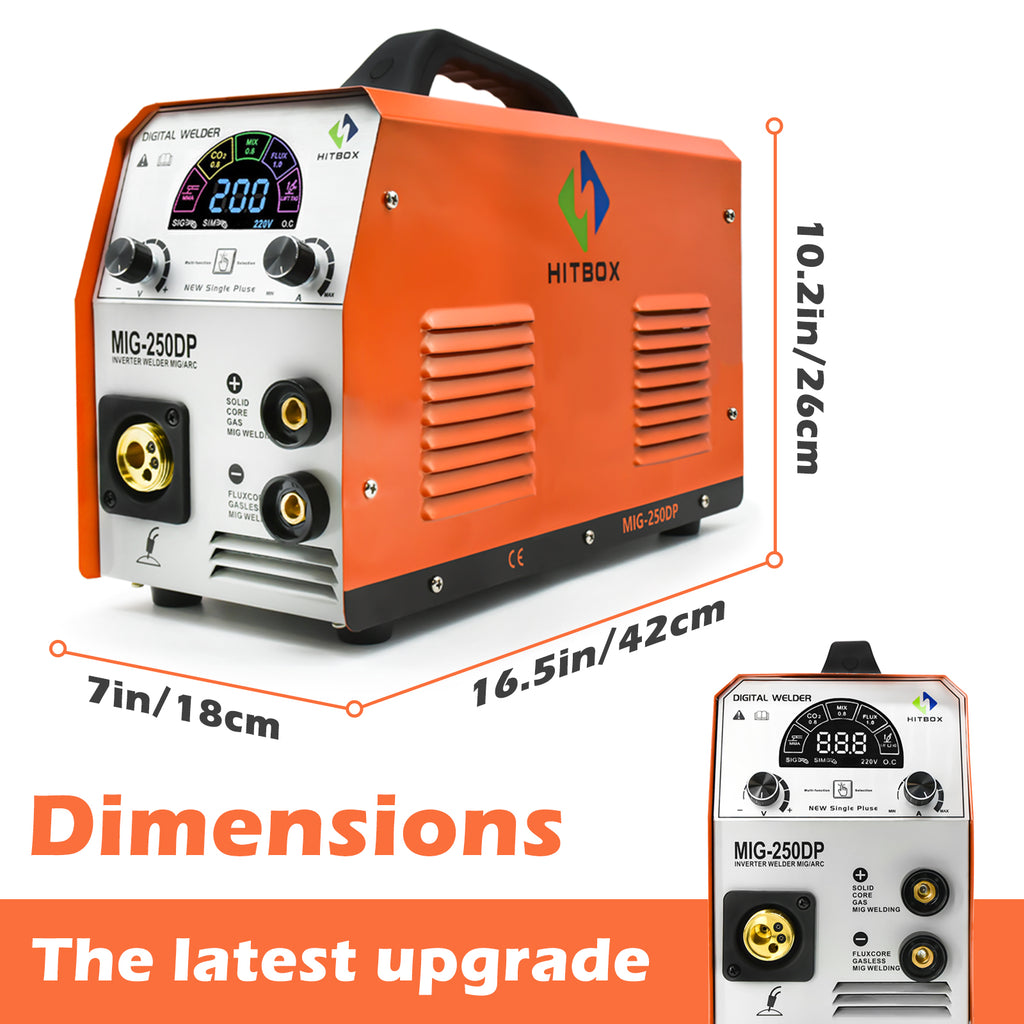

Size (cm): 49.5cm *28.2 cm *36.5cm (19.48in*11.1in*14.37in）
Weight (Kg): 7.8

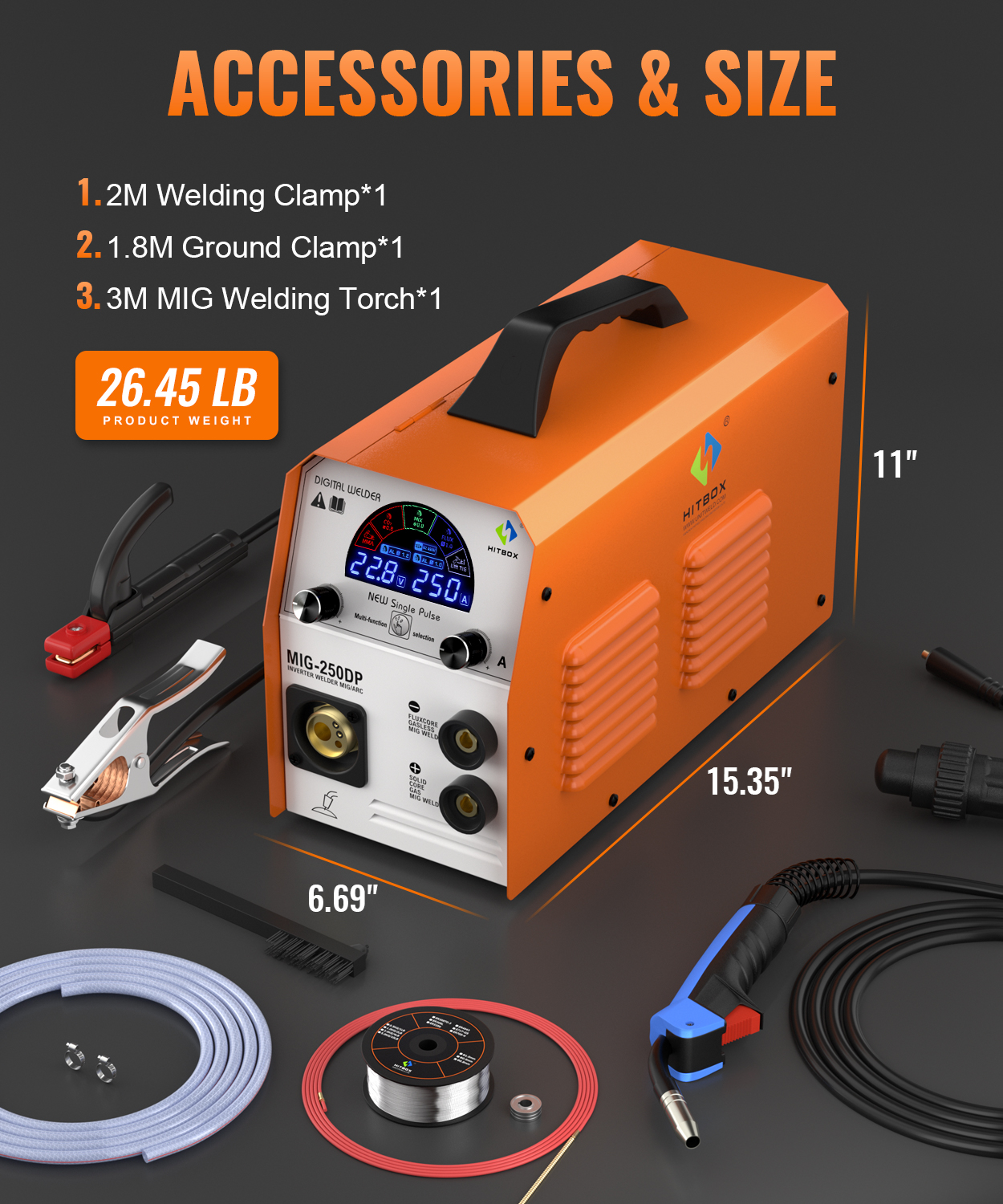

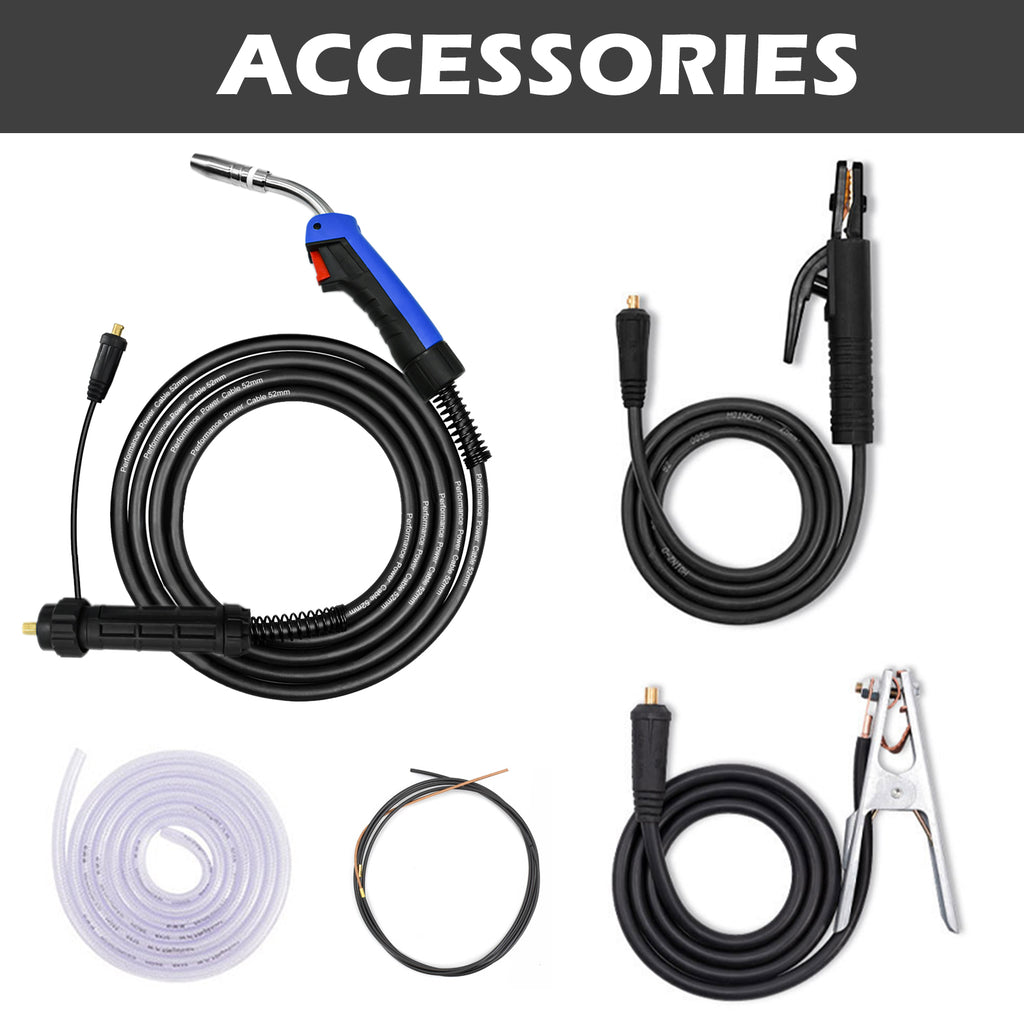

Package Include:

1pcs Mig Welder
1pcs Earth Clamp
1pcs Electrode Holder
1pcs Mig Torch
1pcs Gas Tube
1pcs U-type roll driver
1pcs V-type roller driver
1pcs 110V 220V Cable adapter
1pcs Graphite wire feed tube
1pcs Welding wire
