HITBOX HIA-1000: 4-in-1 Air-Cooled Laser Machine (Welding, Cutting, Cleaning, Rust Removal)
Overview
The HITBOX HIA-1000 is a versatile 4-in-1 laser solution engineered to simplify metalworking tasks. It integrates welding, cutting, surface cleaning (including rust removal), and weld seam cleaning into one compact, air-cooled unit. Designed for both professionals and enthusiasts, this machine delivers precision, speed, and multi-functionality while ensuring non-stop operation and reliability in extreme environments.
Key Features

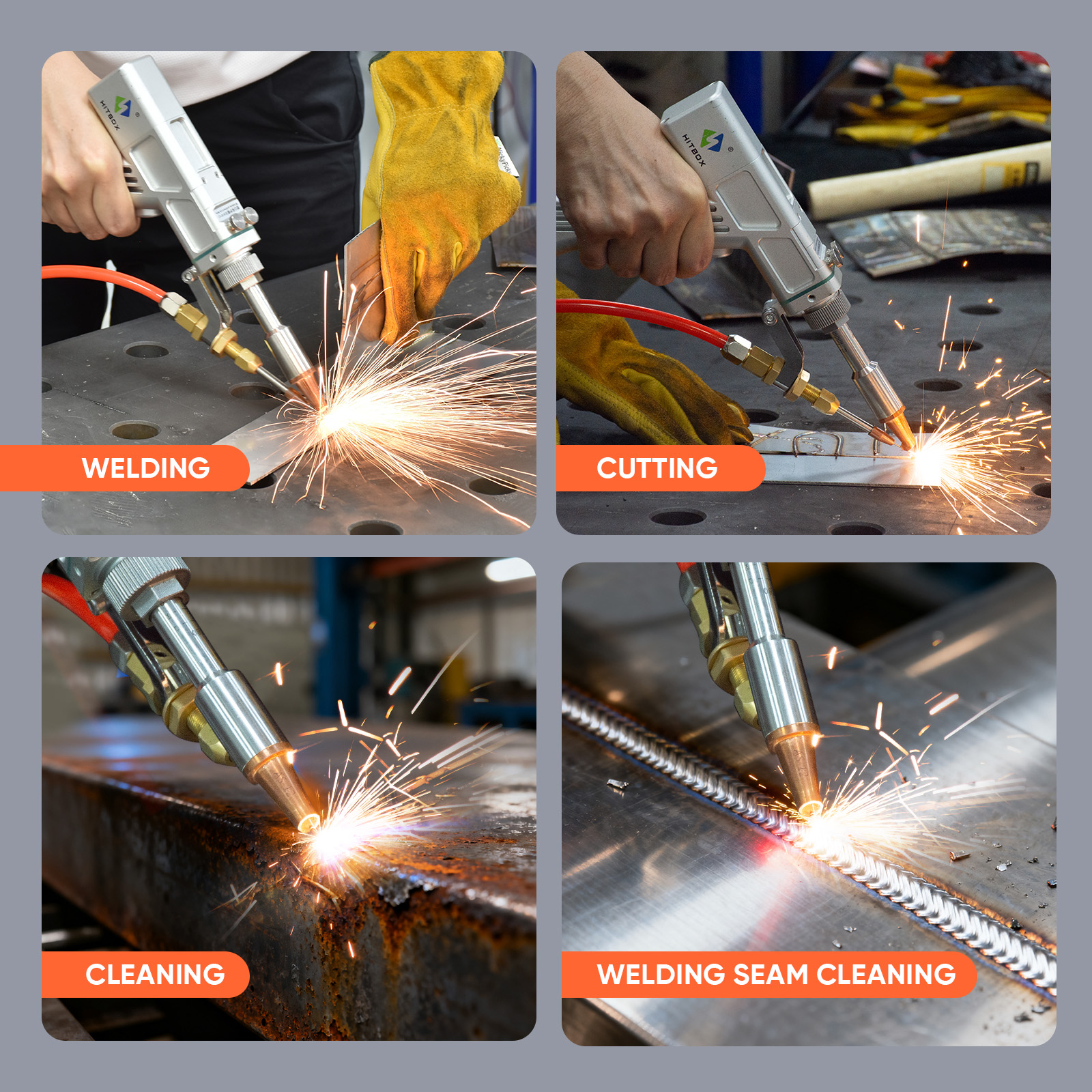

4-in-1 Functionality
Perform welding, cutting, surface cleaning (rust, paint, contaminants removal), and weld seam cleaning—eliminating the need for multiple specialized tools.
Air-Cooled for 24/7 Operation
Advanced air-cooling technology enables continuous 7×24H welding/cutting/cleaning, making it ideal for high-volume or prolonged projects without overheating.
Smart Adaptive Thermal Management
Maintains peak performance in extreme temperatures, operating seamlessly from -20°C (-4°F) to 40°C (104°F).
High-Efficiency Laser Performance
- 750W Average Laser Power: Delivers consistent energy for clean welds, precise cuts, and thorough cleaning.
- 1080nm Central Wavelength: Optimized for metal interaction, ensuring accuracy in all processes.
- Adjustable Welding Speed (15–600cm/min): Tailor speed to material thickness (0.5–4mm) and task requirements.
User-Friendly & Safe Design
- Intuitive Operation: Easy to learn, with customizable swing patterns for versatile welding techniques.
- Emergency Stop Button: Instantly halts operation for enhanced safety.
Technical Specifications
| Parameter | Details |
|---|
| Model | HITBOX HIA-1000 |
| Functionality | 4-in-1 (Welding, Cutting, Cleaning, Weld Seam Cleaning) |
| Cooling System | Air-Cooled |
| Average Laser Power | 1000W |
| Central Wavelength | 1080nm |
| Welding Thickness | 0.5–4mm |
| Welding Speed | 15–600cm/min (Adjustable) |
| Input Voltage | AC 220V–240V, 50/60Hz |
| Weight | 36.5KG (80.47 lbs) |
| Output Mode | Continuous Wave / Pulsed |
| Operating Temperature | -20°C to 40°C |
Applications
The HIA-1000 excels across industries and projects:
- Welding: Precision joins on metals (0.5–4mm thick) for automotive, aerospace, or custom fabrication.
- Cutting: Clean, accurate cuts on conductive materials.
- Cleaning: Remove rust, paint, or debris from metal surfaces to restore or prep for finishing.
- Weld Seam Cleaning: Refine weld lines for a professional, polished finish.
