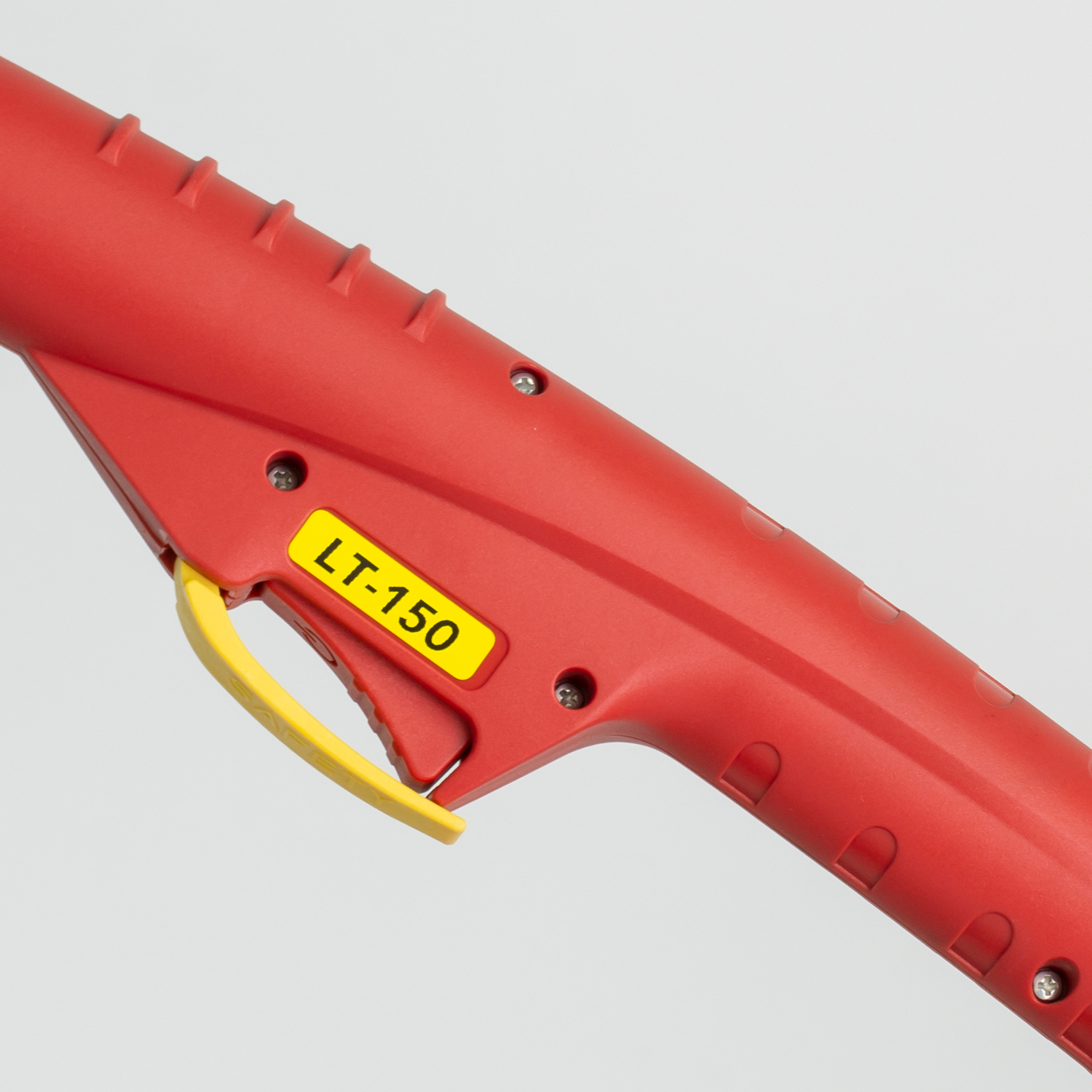

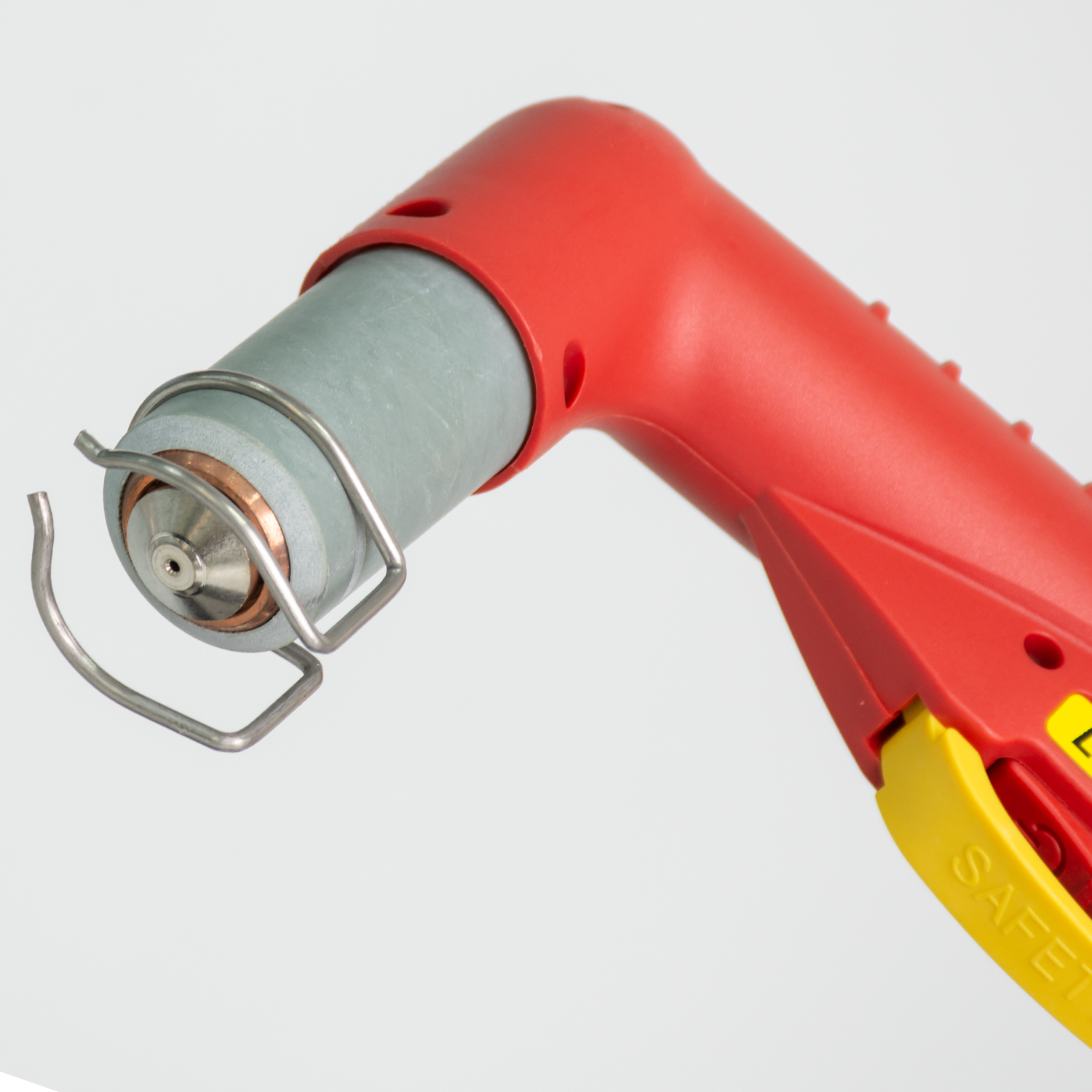

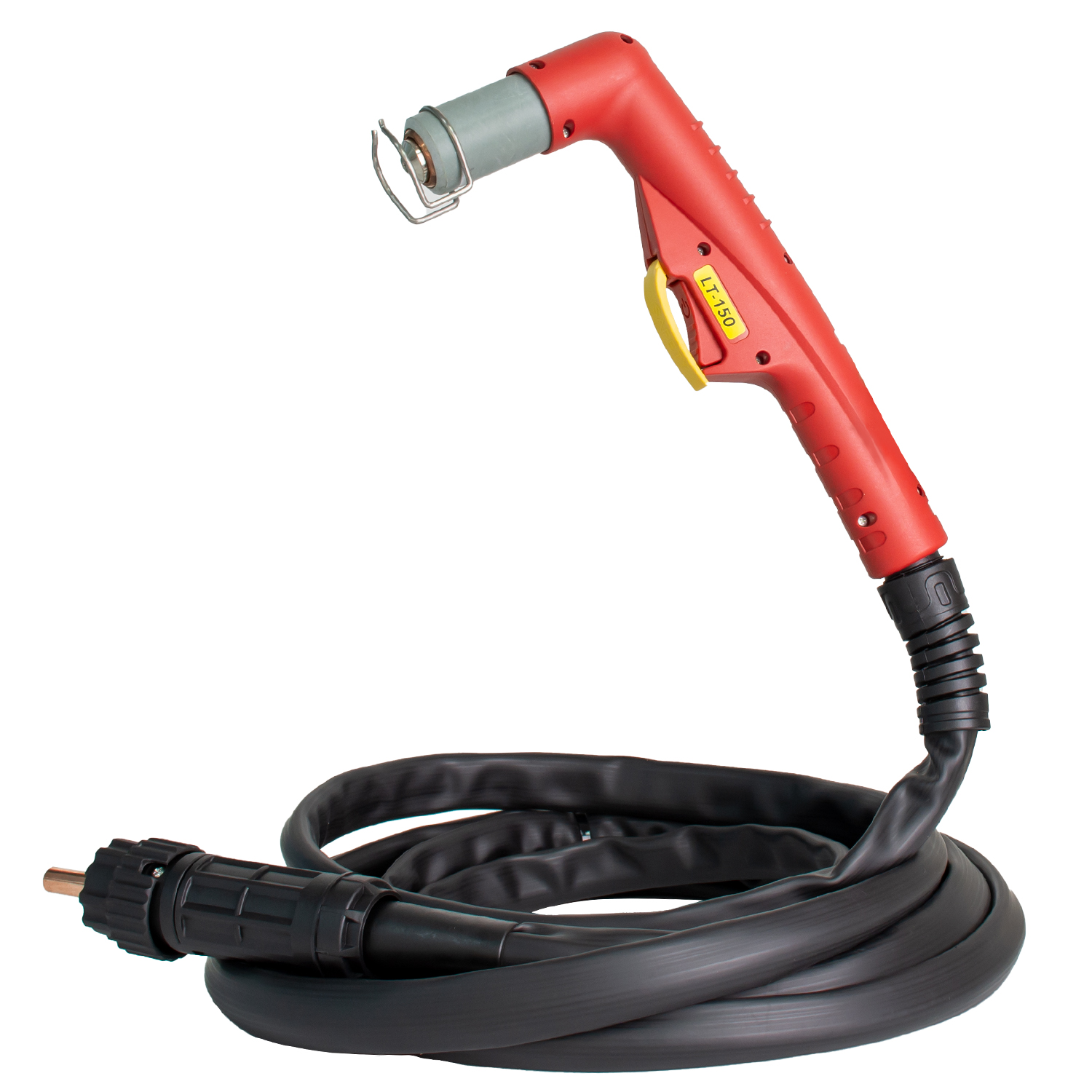

Plasma Cutting Torch 150A 6M Cable HITBOX CUT-150 PRO for Plasma Cutter Machine
High Power: 150A @ 60% Duty Cycle for tough jobs.
Deep Cut: Cuts mild steel up to 40mm thick.
Lightweight: Only 0.8kg for reduced operator fatigue.
Multi-Process: Ideal for Contact, Drag, and Gouging.
Long Cable: 6-meter integrated cable for extended reach.
Wide Compatibility: Huge range of affordable consumables.
Easy Repair: Modular design with replaceable parts.
| Parameter | Value |
|---|---|
| Model | HITBOX CUT-150 |
| Net Weight | 0.8kg |
| Peak Voltage (V PEAK) | 500 V |
| Gas Consumption | 260 l/min |
| Ignition Type | High-Frequency Contactless |
| Operating Air Pressure | 5 bar |
| Air Consumption | 200 l/min |
| Rated Current (@ 60% Duty Cycle) | 150 A |
| Rated Current (@ 100% Duty Cycle) | 110 A |
| Maximum Cutting Capacity | 35-40 mm |
| Standard Cable Length | 6 m |
