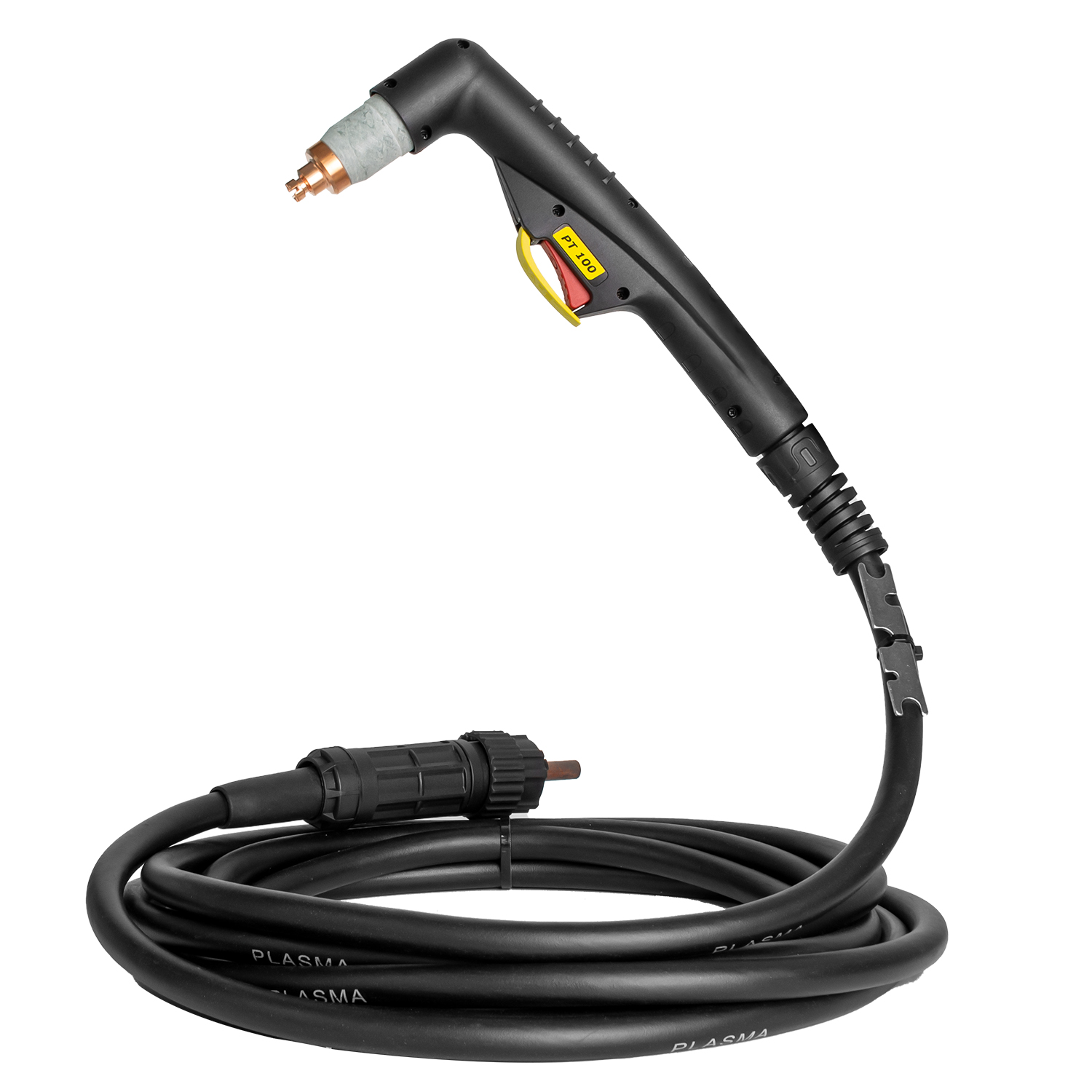

HITBOX Plasma torch PT-100 6m Handheld Plasma Cutting Torch - 6M Length, Central Plug, 100 Amp, HF High-Frequency Non-Contact Arc Ignition
Description
Plasma torch HITBOX PT100 TORCH 6m is engineered for operation in mechanized plasma cutting systems under the highest load conditions. Its pneumatic ignition technology enhances the service life of consumables, making it a reliable choice for intensive cutting tasks.
Features
- High Productivity: As a leading model in the HITBOX plasma torch series with pneumatic ignition, it enables high-quality cutting of workpieces up to 60 mm thick at a maximum current of 100A, with a 100% duty cycle (PV) rating.

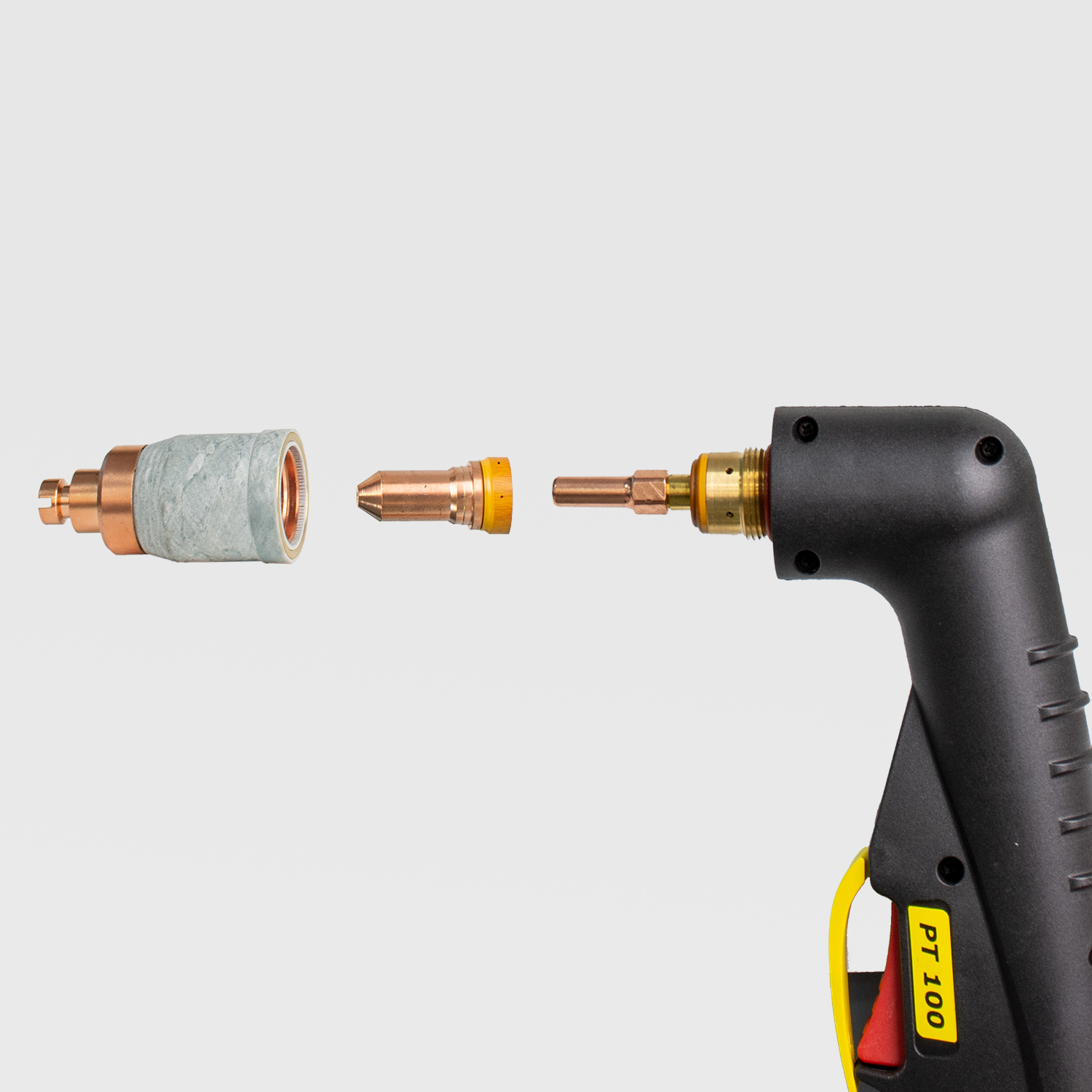

- Longevity: The integration of a reinforced cathode, nozzle, and contact tip, coupled with pneumatic ignition, ensures an extended service life for each set of consumables.
- Customizable: A broad range of accessories (from roller nozzles to circular devices) can be fitted to the plasma torch, greatly expanding its application scope.
- Ergonomic Design: The torch handle is crafted to match natural grip physiology and features anti-slip pads, ensuring maximum comfort during operation.
Specifications
| Parameter | Value |
|---|
| Maximum Cutting Current | 100 A |
| Duty Cycle (H, %) | 100 |
| Pressure | 4.5 - 5.0 atm |
| Gas Consumption | 260 l/min |
| Ignition Type | Pneumatic Ignition |
| Post-Cutting Blow Time (Recommended) | 140 sec |
| Maximum Cutting Thickness | Up to 60 mm |
| Rail Length | 6 m |

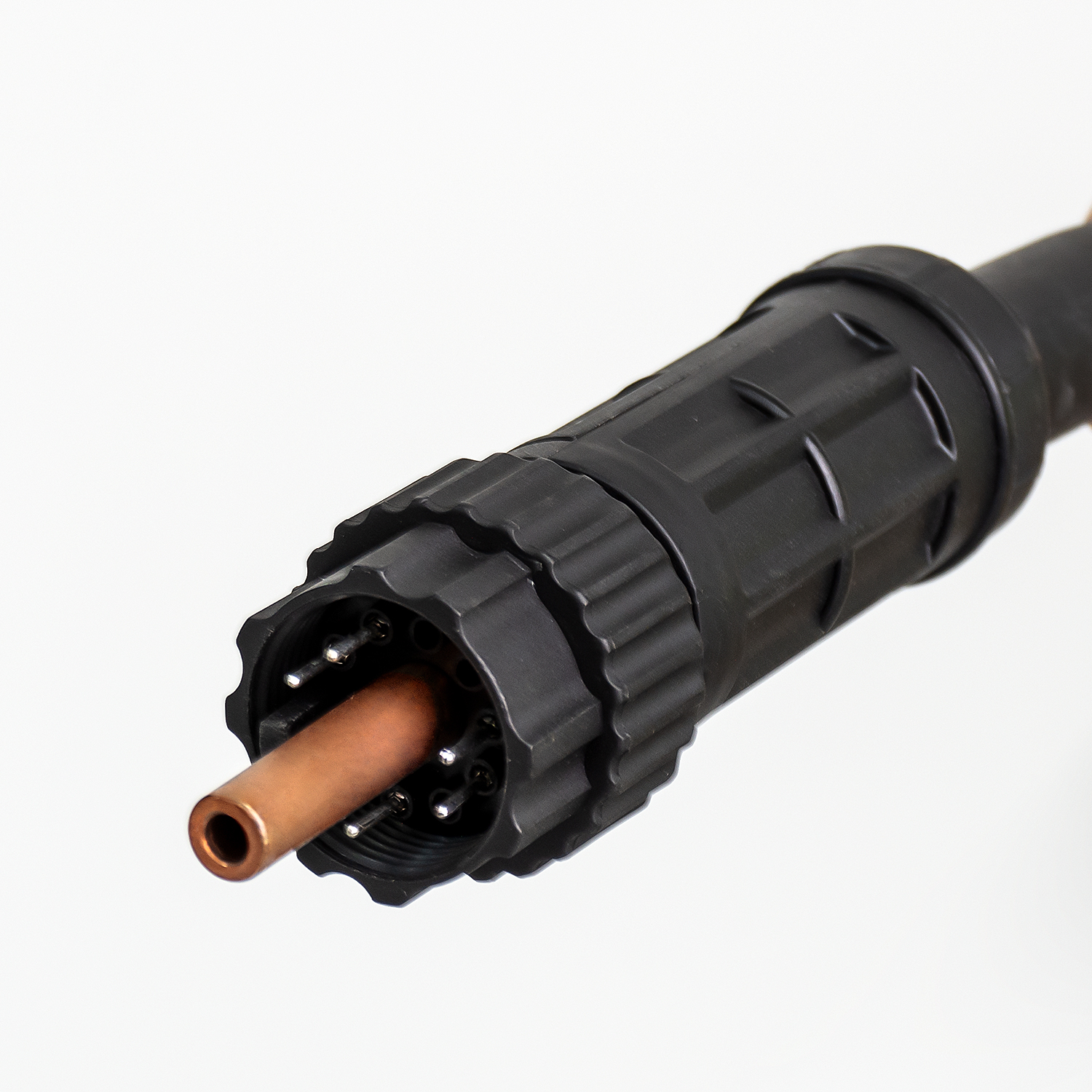

| Connection Type | Central Adapter
|
