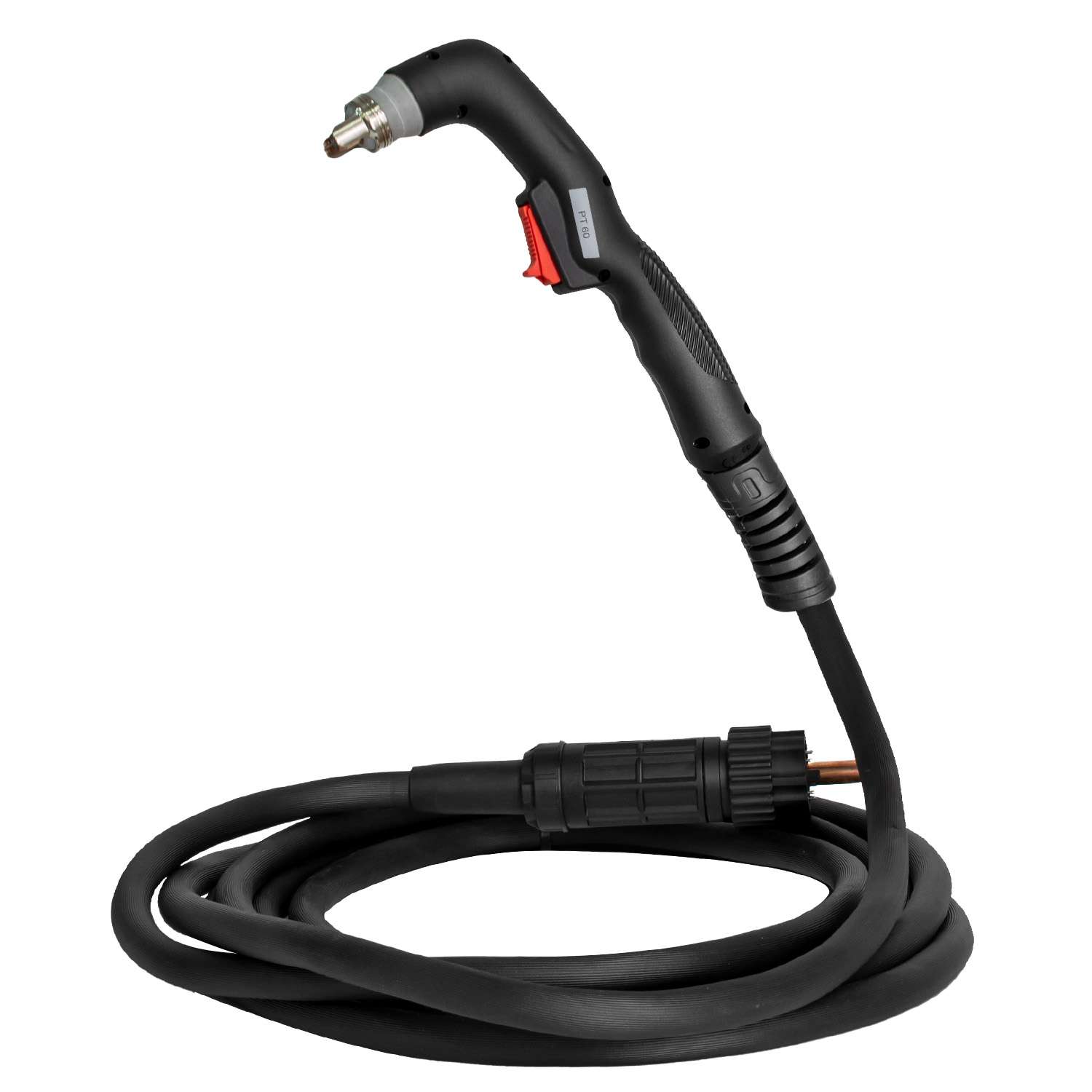

HITBOX PT60 Handheld Plasma Cutting Torch - 6M Length, Central Plug, 60 Amp, HF High-Frequency Non-Contact Arc Ignition
Description
Plasma torch HITBOX PT-60 TORCH 6m is engineered for operation in mechanized plasma cutting systems under the highest load conditions. Its pneumatic ignition technology enhances the service life of consumables, making it a reliable choice for intensive cutting tasks.
Features
- High Productivity: As a leading model in the HITBOX plasma torch series with pneumatic ignition, it enables high-quality cutting of workpieces up to 60 mm thick at a maximum current of 60A, with a 100% duty cycle (PV) rating.

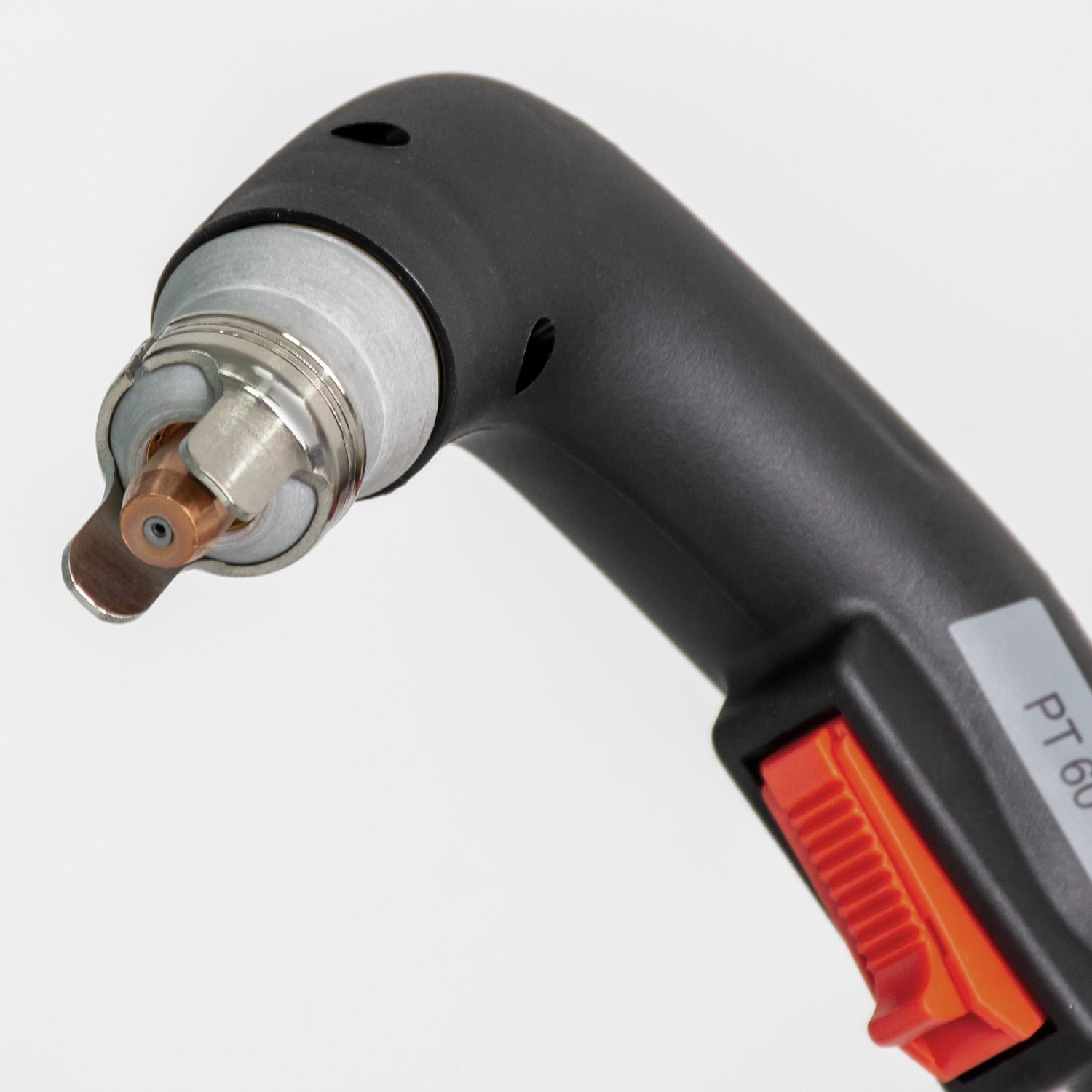

- Longevity: The integration of a reinforced cathode, nozzle, and contact tip, coupled with pneumatic ignition, ensures an extended service life for each set of consumables.
- Customizable: A broad range of accessories (from roller nozzles to circular devices) can be fitted to the plasma torch, greatly expanding its application scope.

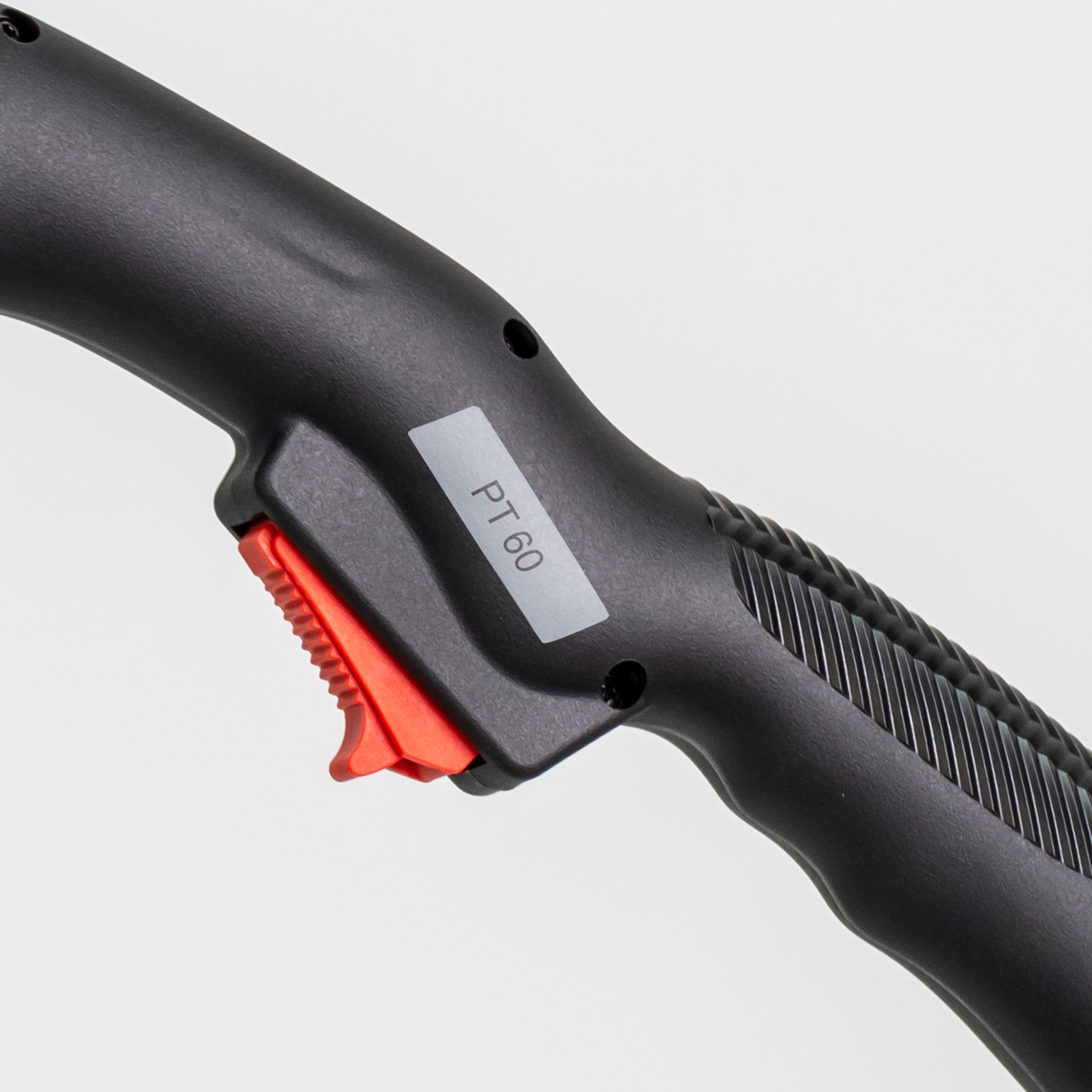

- Ergonomic Design: The torch handle is crafted to match natural grip physiology and features anti-slip pads, ensuring maximum comfort during operation.
Specifications
| Parameter | Value |
|---|
| Maximum Cutting Current | 60 A |
| Duty Cycle (H, %) | 100 |
| Pressure | 4.5 - 5.0 atm |
| Gas Consumption | 260 l/min |
| Ignition Type | Pneumatic Ignition |
| Post-Cutting Blow Time (Recommended) | 140 sec |
| Maximum Cutting Thickness | Up to 60 mm |
| Rail Length | 6 m |

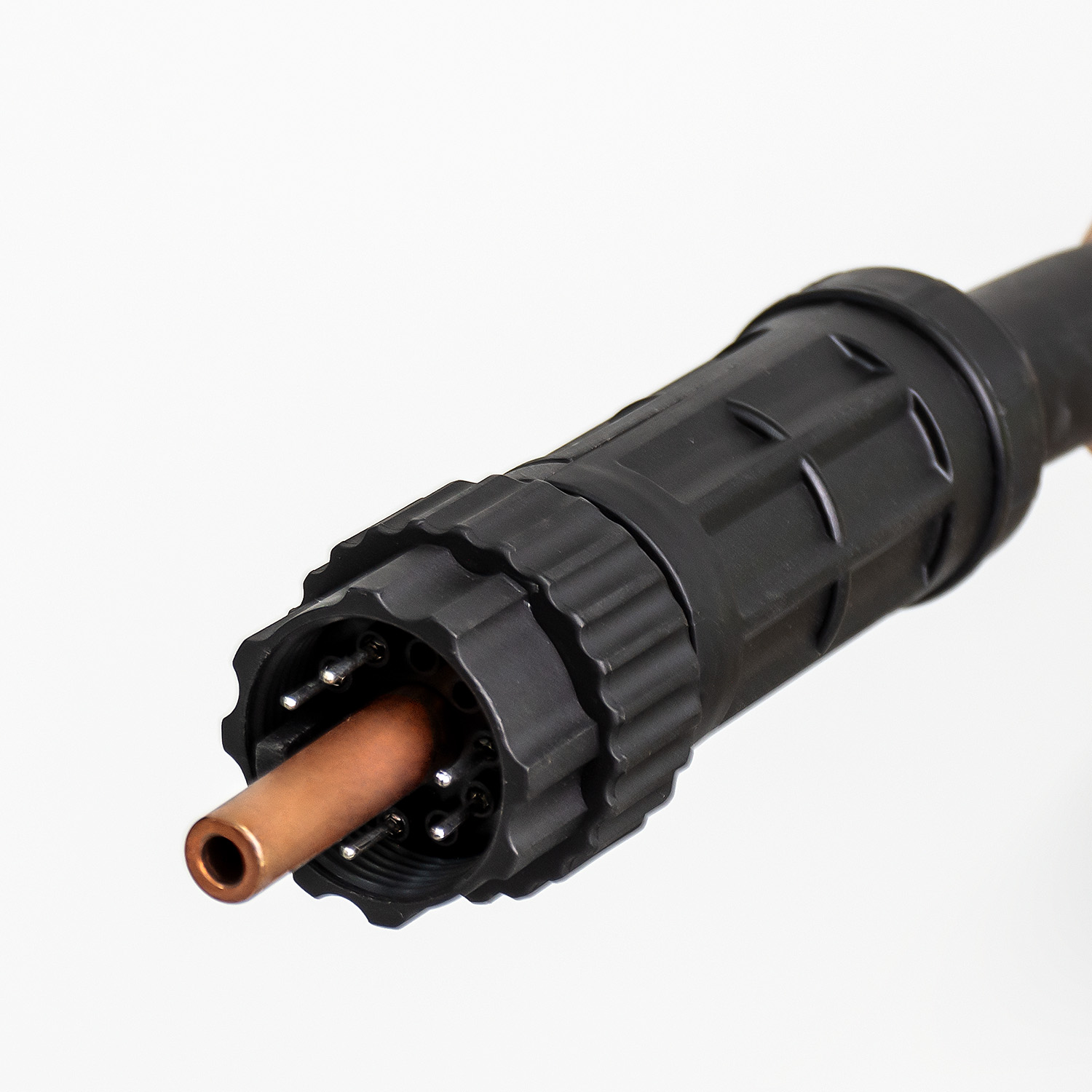

| Connection Type | Central Adapter
|
